COMPUTADOR ARMADO BIP Intel® Core™ i7-7700, 8GB DDR4, 1TB SATA, DVDRW, Nvidia GTX 1080 GAMING 8GB GDDR5, Gigabit LAN, Audio 8CH, USB 3.0, DVI-D, D-Sub, HDMI (PCMP7700b150). Incluye Teclado y Mouse Genius.

Especificaciones Tarjeta Madre

• CPU ProcesadoresIntel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
  - Soporta Intel® 14 nm CPU
  - Soporta Intel® Turbo Boost Technology 2.0
  * Refer to www.asus.com for CPU support list

• Chipset Intel® B150

• Memoria
  4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.

• Gráficos
  Procesador Gráfico Integrado - Soporte Intel® HD Graphics
  Soporta salida Multi-VGA : HDMI/DVI-D/RGB ports
  - Soporta HDMI con máxima resolucioón 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Soporta DVI-D con máxima resolucioón 1920 x 1200 @ 60 Hz
  - Soporta RGB con máxima resolucioón 1920 x 1200 @ 60 Hz
  Máximo de memoria compartida de 1024 MB
  Soporta hasta 3 pantallas sumultáneamente

• Slots de Expansión
  - 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  - 2 x PCIe 3.0/2.0 x1

• Almacenamiento
  Intel® B150 chipset :
  - 6 x SATA 6Gb/s port(s), gray,
  - 1 x M.2 x4 Socket 3*1, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

• LAN
  - Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  - ASUS LAN Guard

• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Soporta : Jack-detection, Front Panel Jack-retasking
  Características :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• Puertos USB
  Intel® B150 chipset :
  - 1 x USB 5Gb/s port(s) port(s) (1 en panel posterior, , Type-C, Support 3A power output)
  Intel® B150 chipset :
  - 4 x USB 3.0/2.0 port(s) (2 en panel posterior, blue, 2 at mid-board)
  Intel® B150 chipset :
  - 6 x USB 2.0/1.1 port(s) (2 en panel posterior, black, 4 at mid-board)

• Soporte Sistema Operativo
  - Windows® 10 , 64bit
  - Windows® 8.1 , 64bit
  - Windows® 7 , 32bit/64bit *3

• Puertos I/O Traseros
  - 1 x PS/2 keyboard (purple)
  - 1 x PS/2 mouse (green)
  - 1 x DVI-D
  - 1 x D-Sub
  - 1 x HDMI
  - 1 x LAN (RJ45) port(s)
  - 1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  - 2 x USB 3.0 (blue) Type-A
  - 2 x USB 2.0
  - 3 x Audio jack(s)

• Internal I/O
  -1 x USB 3.0 conector(s) support(s) additional 2 USB 3.0 port(s)
  - 2 x USB 2.0 conector(s) support(s) additional 4 USB 2.0 port(s)
  - 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  - 1 x TPM header
  - 1 x LPT header
  - 1 x COM port(s) conector(s)
  - 6 x SATA 6Gb/s conector(s)
  - 1 x CPU Fan conector(s) (1 x 4 -pin)
  - 2 x Chassis Fan conector(s) (2 x 4 -pin)
  - 1 x S/PDIF out header(s)
  - 1 x 24-pin EATX Power conector(s)
  - 1 x 4-pin ATX 12V Power conector(s)
  - 1 x Front panel audio conector(s) (AAFP)
  - 1 x System panel(s)
  - 1 x Chassis Intrusion conector(s)
  - 1 x Clear CMOS jumper(s)

• Accesorios
  - Manual de Usuario
  - I/O Shield
  - 2 x SATA 6Gb/s cable(s)
  - 1 x M.2 Screw Package
  - 1 x DVD de soporte

• BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial
  Presence Detect) memory information

• Capacidad de gestión WfM 2.0, DMI 3.0, WOL by PME,WOR by PME, PXE
• Disco Soporte
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Factor de forma mATX Form Factor 9.2 inch x 8.1 inch ( 23.4 cm x 20.6 cm )

Nota
*1:When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_1 port.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.

El equipo incluye los siguientes componentes:

• GENIUS Combo Teclado Mouse Slimstar C130 USB 31330208102
• BIP ST (110) Servicio Armado basico, solo ensamble de partes y piezas.

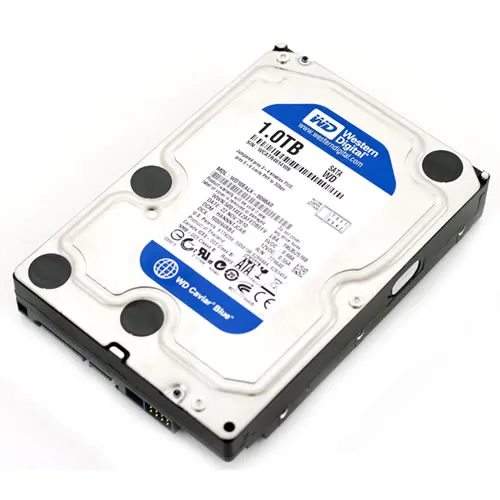

• Western Digital Disco Duro 1Tb 3.5" 7200 RPM Sata3 Blue WD10EZEX
• TP-Link Tarjeta de red PCI Express 10/100/1000 Mbps TG-3468
• INTEL CPU Core i7-7700 Processor 8M Cache, FCLGA1151 pn BX80677I77700
• THERMALTAKE Gabinete H15 Fuente 450W CA-3D4-45C1WU-01
• CORSAIR Fuente de poder 850W/12V ATX CX Serie 80 Plus Bronze pn CP-9020099-WW
• Team Group DIMM 8GB DDR4 2400MHz pn: TED48G2400C1602
• LG Grabador DVDRW 24x Interno SATA BULK GH24NSC0

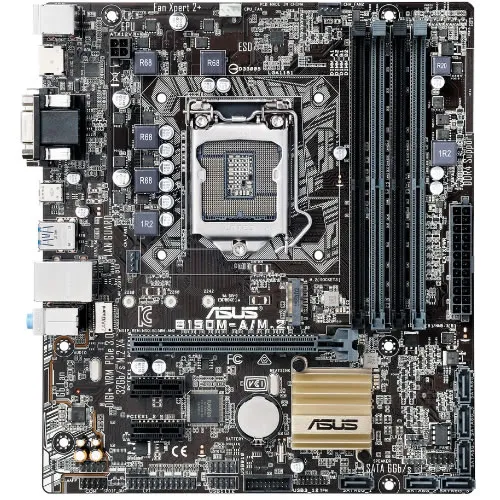

• ASUS Tarjeta Madre B150M-A/M.2 LGA1151 4D4 U3S6 M2 HDMI 90MB0RR0-M0EAY0

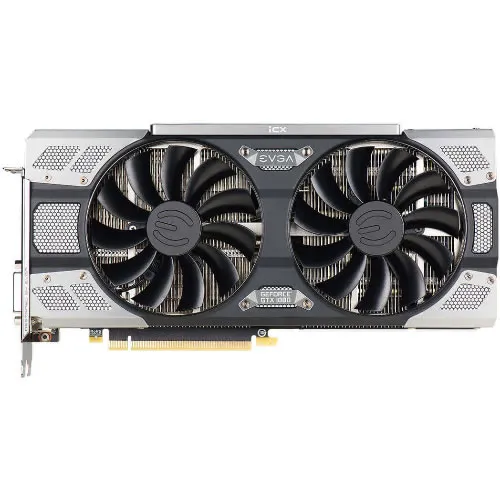

• EVGA Tarjeta de video Nvidia GTX 1080 GAMING 8GB GDDR5X FTW2 DT pn 08G-P4-6684-KR
